How to emboss text on curve surface

April 25, 2012

1. Create round plate with diameter 2 in and 0.75 in height.

2. Right click to Front Plane, click show.

3. Click Reference Geometry , click plane . Set distance to 1.5 in and number of plane # 1. and OK.

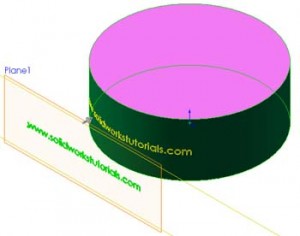

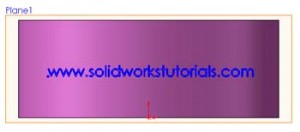

4. Sketch text to Plane 1,

5. Click wrap , click curve face set thickness to 0.02in, OK.

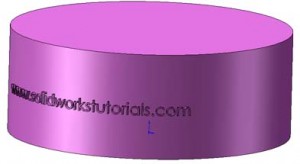

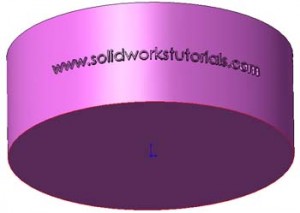

6. Finish, you can try emboss, deboss and scribe if you wish to.
