How to use Swept Boss/Base

April 25, 2012

In this tutorials you will create swept part using Swept Boss/Base tool.

1.Click New. Click Part, OK.

2.Click Top Plane and click on Sketch.



3.Click Circle and sketch a circle origin as it center. Click Smart Dimension, dimension sketched circle diameter as 0.3in.

4.Exit Sketch.

5.Click on Front Plane and click Sketch.

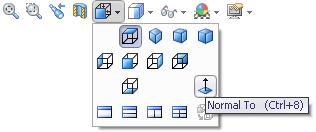

6.Click on View Orientation>Normal To.

7.Zoom out the sketch, click on Spline and sketch a curve as sketched below.

8.Exit Sketch.

9.Click View Orientation>Isometric.

10. Click Features>Swept Boss/Base. For swept profile select Sketch1 (circle) and for path click on Sketch2 (curve).

and . Done!
