How to use Lofted Boss/Base

April 25, 2012

In this tutorial you will create this part using loft feature

1. Click New. Click Part, OK.

2. Click Top Plane and click on Sketch.



3. Click Circle, sketch a circle start at origin. Click Smart Dimension, click on circle and set dimension to 1 in.

4. Exit sketch.

5. Click Top Plane and click Features>Reference Geometry>Plane.

Set distance to 1 in apart, set # to 2 and OK. Two more plane added, click View Orientation>Isometric

Plane 1 and Plane2.

6. Click on Plane 1, click Sketch.

7. Click Circle, sketch a circle start at origin. Click Smart Dimension, click on circle and set dimension to 2 in.

Exit sketch.

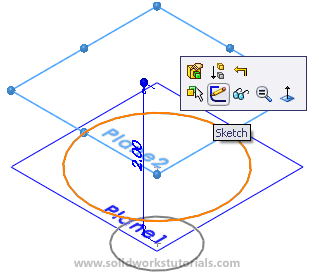

8. Click on Plane 2, click Sketch.

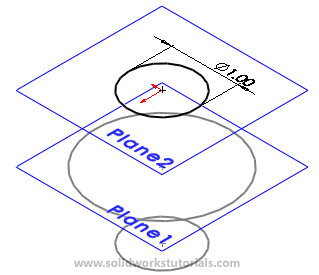

9. Click Circle, sketch a circle start at origin. Click Smart Dimension, click on circle and set dimension to 1 in.

Exit sketch.

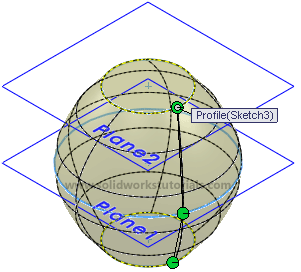

10. Click Features>Lofted Boss/Base click bottom circle, middle circle, top circle

and OK.

11. Hide Plane 1, hide Plane 2.

12. You’re done.
